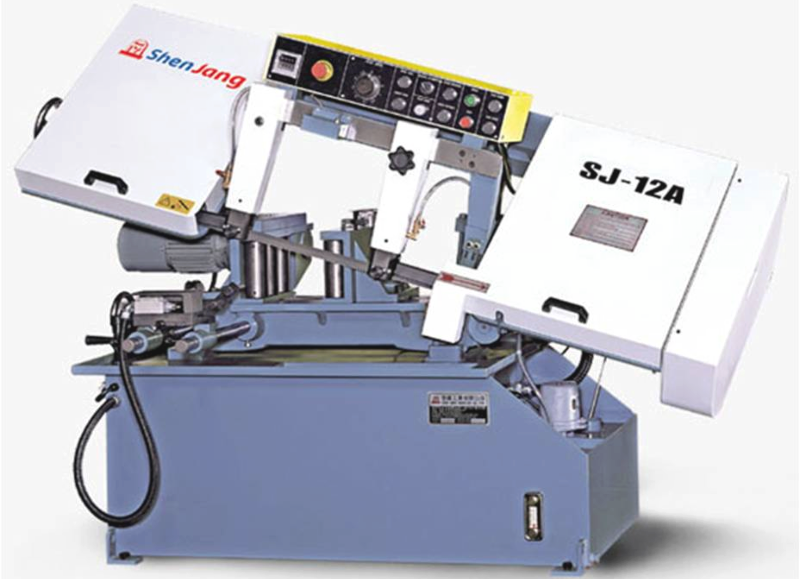

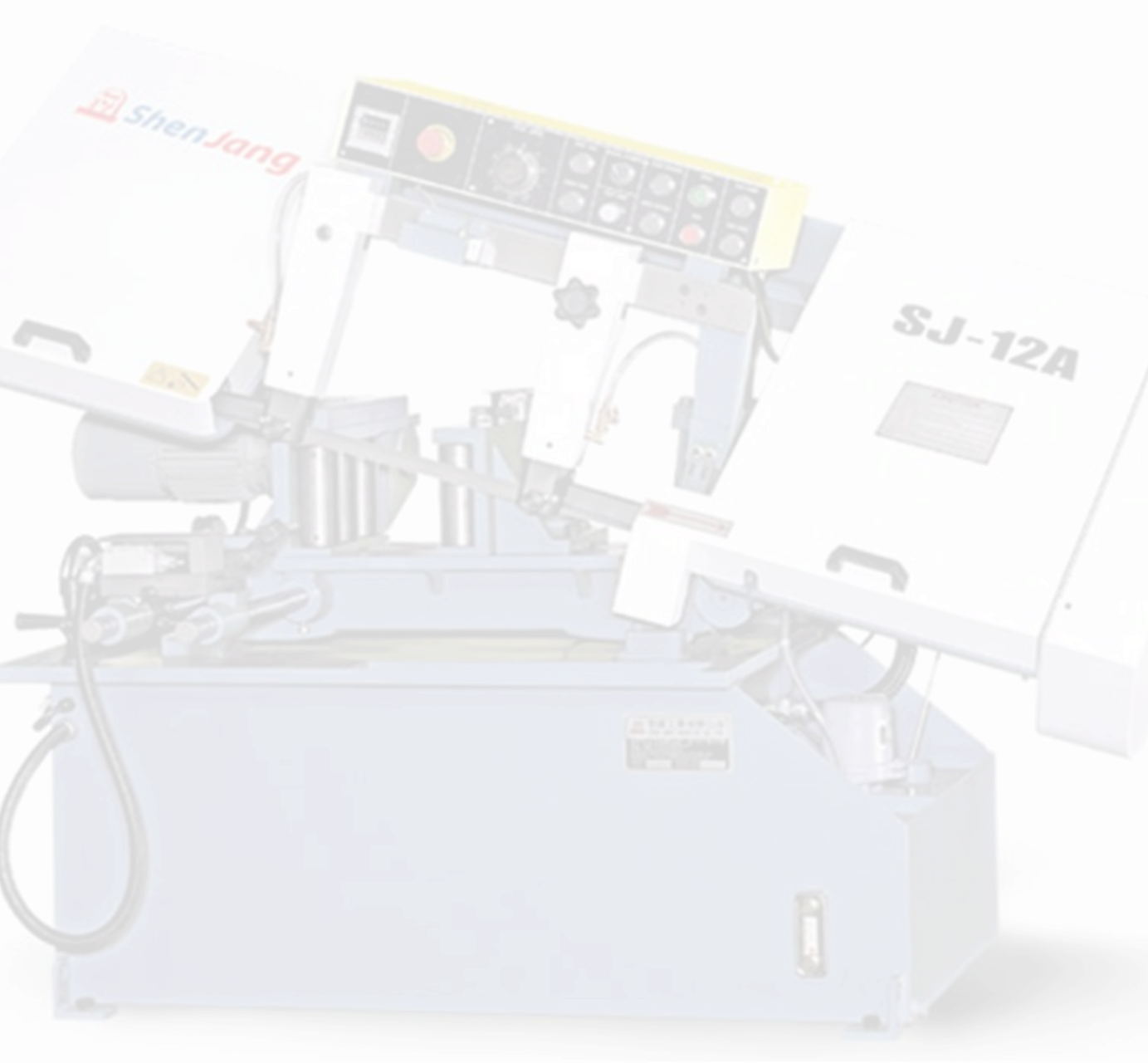

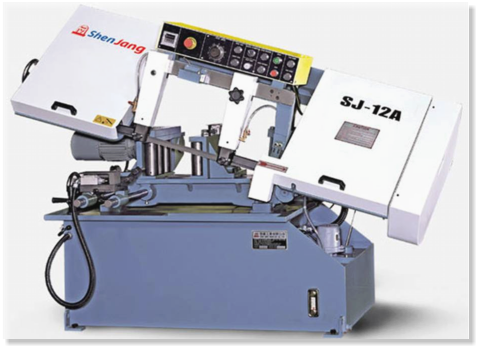

SJ-10A (10”) / SJ12A (12”) / SJ-15A (15”)
•
Roller Feed
Features
•
Heavy duty automatic machine
•
Roller type bar feed for continuous automatic cutting
•
Designed for accurate 90 degrees cutting
•
Automatic blade breakage power off system
•
Out of stock sensor
•
Counting device
•
Work light fitted standard
•
Instant blade tension
•
Large tungsten carbide blade guide
•
Adjustable rod for the same cutting length
© 2016 PICROSYNC CC - Reg. No. 2010/020942/23 - All Rights Reserved
Address: Unit E, 8 Moller Street, Industries East, Germiston, 1401
Phone: +27 83 679 3706
Email: service@picrosync.co.za
Business hours: Mondays - Thursdays: 07:30 - 17:00
Fridays: 07:30 - 14:30
Sole South African Distributor
Is your machine alerting you to overload alarms, or showing any
other signs of abnormal operation ?
Give us a call right away ! Arrie - Service Co-ordinator +27 83 679 3706
Automatic Horizontal Bandsaw
Contact us today
083 679 3706
Specifications
SJ-10A (10”)
SJ-12A (12”)
SJ-15A (15”)
10” (254 mm)
12” (305 mm)
15” (381 mm)
9” (228 mm)
10” (254 mm)
11” (280 mm)
Capacity at 90°
7” x 14” (178 x 356 mm)
8” x 13” (203 x 330 mm)
9” x 16” (228 x 407 mm)
Blade Size
27 x 0.9 x 3820 mm
27 x 0.9 x 3820 mm
27 x 0.9 x 4265 mm
Motor
2 HP (1.5 kW)
3 HP (2.25 kW)
3 HP (2.25 kW)
Speed Range
23, 40, 55, 67 MPM
14, 23, 27, 36, 46, 73 MPM
14, 24, 29, 38, 48, 76 MPM
Packing Size
2090 x 955 x 1320 mm
2090 x 955 x 1320 mm
2280 x 955 x 1485 mm
Nett Weight
700 kg
900 kg
1100 kg
Gross Weight
800 kg
1000 kg
1200 kg
