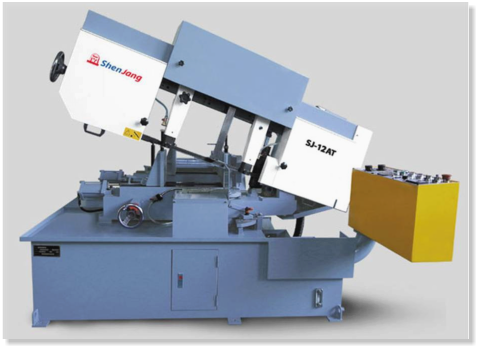

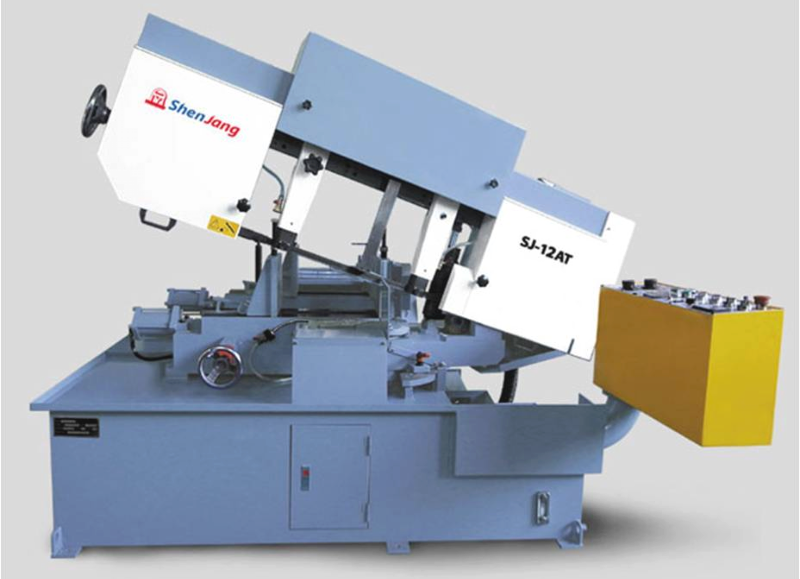

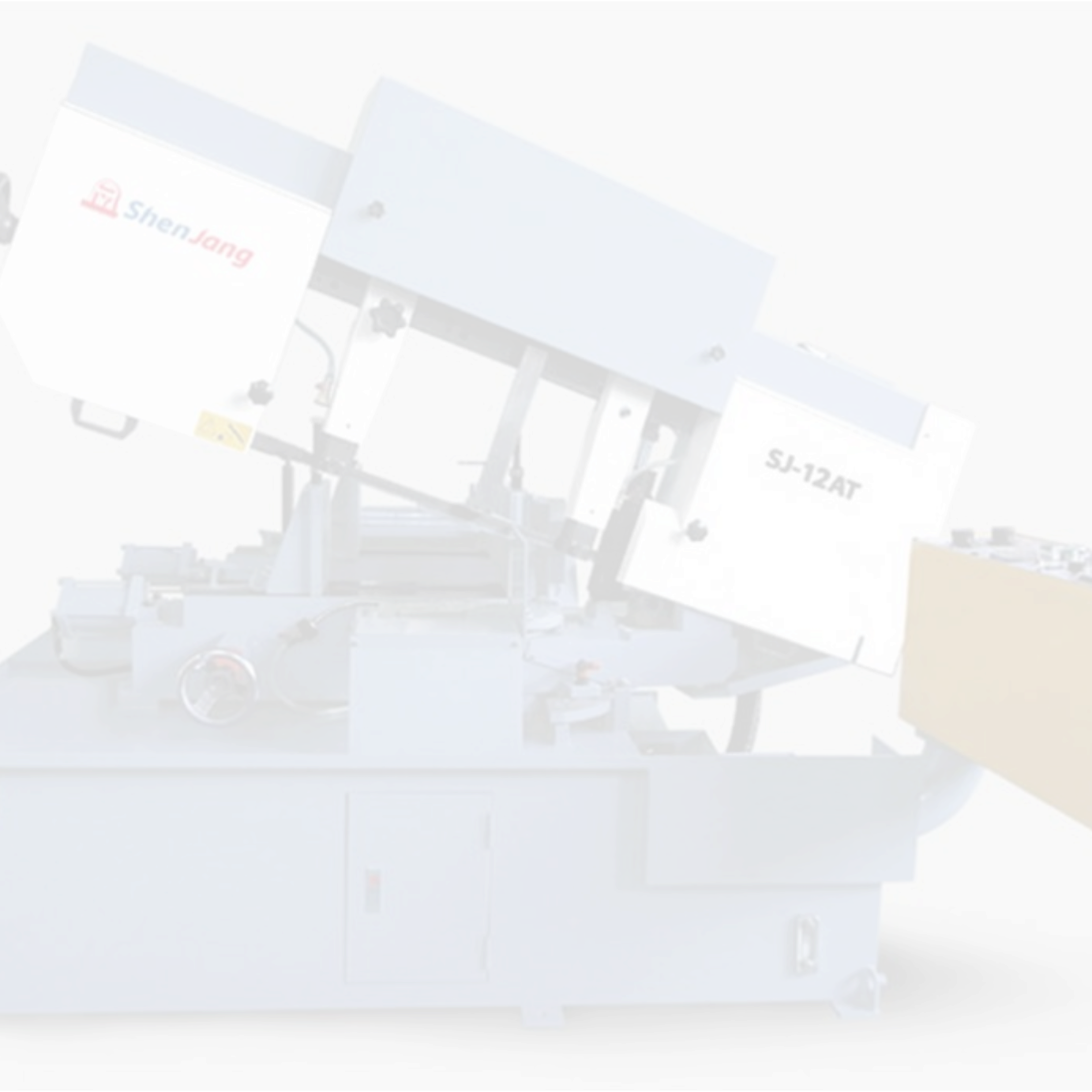

SJ-12AT (12”) / SJ15AT (15”) • Hydraulic Vice Feed - Angle Cutting
Features • Heavy duty Automatic Machine • Hydraulic vice feed for continuous automatic cutting • Swivel head for easy 45 degrees angle cutting without moving material • Auto cutting, auto feeding, auto lifting frame and auto clamping double vice • Automatic blade breakage power off system • Out of stock sensor • Counting device • Flushing hose • Length indexing digital readout • Work light fitted standard • Efficient coolant system with built-in tank and pump • Instant blade tension • Large tungsten carbide and roller blade guide • Adjustable rod for the same cutting length • Rugged fabricated steel construction, powerful drive and positive vice
© 2016 PICROSYNC CC - Reg. No. 2010/020942/23 - All Rights Reserved Address: Unit E, 8 Moller Street, Industries East, Germiston, 1401 Phone: +27 83 679 3706 Email: service@picrosync.co.za Business hours: Mondays - Thursdays: 07:30 - 17:00 Fridays: 07:30 - 14:30
Sole South African Distributor
Design by Weberation

Is your machine alerting you to overload alarms, or showing any

other signs of abnormal operation ?

Give us a call right away ! Arrie - Service Co-ordinator +27 83 679 3706
Retrofit
Contact
Gallery
Consumables
Home
Automatic Horizontal Bandsaw
• Specifications • Features
Specifications
SJ-12AT (12”)
SJ-15AT (15”)
12” (305 mm)
15” (381 mm)
10” (254 mm)
13 ¾” (350 mm)
Capacity at 90°
8” x 16” (203 x 407 mm)
13 ¾” x 19 ¾” (350 x 502 mm)
10” (254 mm)
13 ¾” (350 mm)
Capacity at 45°
10” (254 mm)
13 ¾” (350 mm)
Blade Size
27 x 0.9 x 3820 mm
27 x 0.9 x 4115 mm
Vice Control
Hydraulic
Hydraulic
Speed Range
15 ~ 90 MPM
15 ~ 90 MPM
Motor - Hydraulic
1 HP (0.75 kW)
1 HP (0.75 kW)
Motor - Blade
3 HP (2.25 kW)
3 HP (2.25 kW)
Hydraulic Tank Capacity
45 L
45 L
Hydraulic Tank Output
28 kg/cm²
28 kg/cm²
Coolant Capacity
50 L
50 L
Packing Size
2340 x 2240 x 1710 mm
2340 x 2240 x 1710 mm
Nett Weight
1250 kg
1350 kg
Gross Weight
1470 kg
1590 kg
