Features
•
Heavy duty Semi-Automatic Machine
•
Swivel head for easy angle cutting without moving material
•
Auto lifting frame
•
Optional Hydraulic Vice with *SJ-12SAT+HV / *SJ-15SAT+HV)
•
Instant blade tension
•
Efficient coolant system with built-in tank and pump
•
High efficient, low energy motor
•
Low voltage control with overload protecting
•
Centralized control panel
•
Large tungsten carbide and roller blade guide
•
Adjustable rod for the same cutting length
•
Rugged fabricated steel construction, powerful drive and positive vice
© 2016 PICROSYNC CC - Reg. No. 2010/020942/23 - All Rights Reserved
Address: Unit E, 8 Moller Street, Industries East, Germiston, 1401
Phone: +27 83 679 3706
Email: service@picrosync.co.za
Business hours: Mondays - Thursdays: 07:30 - 17:00
Fridays: 07:30 - 14:30
Sole South African Distributor
Is your machine alerting you to overload alarms, or showing any
other signs of abnormal operation ?
Give us a call right away ! Arrie - Service Co-ordinator +27 83 679 3706

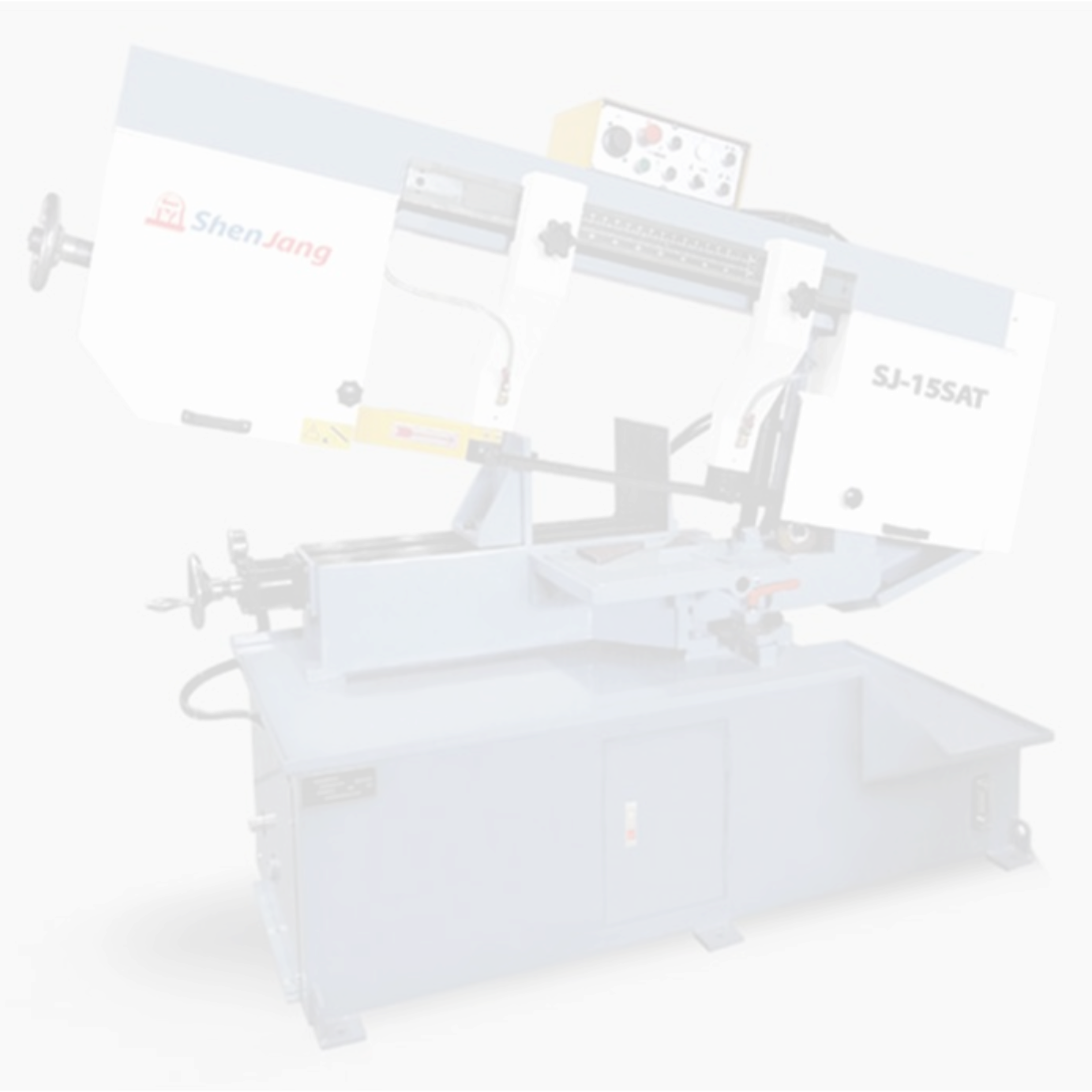

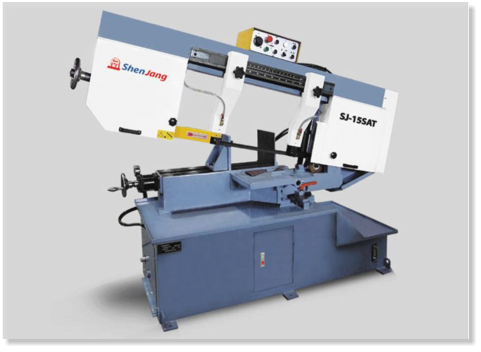

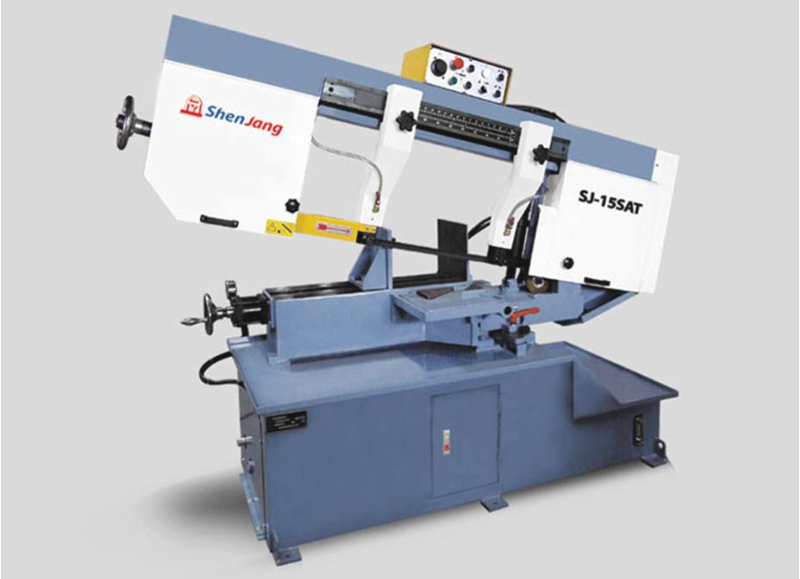

Semi-Automatic Horizontal Bandsaw
Contact us today
083 679 3706
SJ-12SAT (12”) / SJ-15SAT (15”)
•
*SJ-12SAT+HV / *SJ-15SAT+HV - Optional Hydraulic Vice
•
Angle Cutting
Specifications
SJ-12SAT (12”)
SJ-15SAT (15”)
12” (305 mm)
15” (381 mm)
9” (228 mm)
13 ¾” (350 mm)
Capacity at 90°
9” x 13” (228 x 330 mm)
11” x 20 ½” (280 x 521 mm)
9 ½” (242 mm)
13 ¾” (350 mm)
7 ½” (191 mm)
12” (305 mm)
Capacity at 45°
7 ½” x 9 ½” (191 x 242 mm)
12” x 15” (305 x 381 mm)
Blade Size
27 x 0.9 x 3820 mm
27 x 0.9 x 4115 mm
Motor
3 HP (2.25 kW)
3 HP (2.25 kW)
Speed Range
13, 21, 26, 34, 41, 64 MPM
13, 21, 26, 34, 41, 64 MPM
Packing Size
2180 x 790 x 1560 mm
2280 x 910 x 1640 mm
Nett Weight
850 kg
950 kg
Gross Weight
950 kg
1050 kg
