Features
•
Semi-Automatic Machine
•
Swivel head for easy angle cutting without moving material
•
Precision double mitre cut to 45 and 60 degrees right and left
•
Auto lifting frame
•
Large white iron mitre scale - Easy to read
•
Frequency inverter adjustable blade speed control – Easy to choose
•
Stable construction due to double points – Increase efficiency and accuracy
•
Full stroke cylinders for clamping material – Safely and quickly
•
Efficient coolant system with built-in tank and pump
•
High efficient, low energy motor
•
Speed change selection
•
Instant blade tension
•
Large tungsten carbide and roller blade guide
•
Adjustable rod for the same cutting length
•
Low voltage control with overload protecting
© 2016 PICROSYNC CC - Reg. No. 2010/020942/23 - All Rights Reserved
Address: Unit E, 8 Moller Street, Industries East, Germiston, 1401
Phone: +27 83 679 3706
Email: service@picrosync.co.za
Business hours: Mondays - Thursdays: 07:30 - 17:00
Fridays: 07:30 - 14:30
Sole South African Distributor
Is your machine alerting you to overload alarms, or showing any
other signs of abnormal operation ?
Give us a call right away ! Arrie - Service Co-ordinator +27 83 679 3706

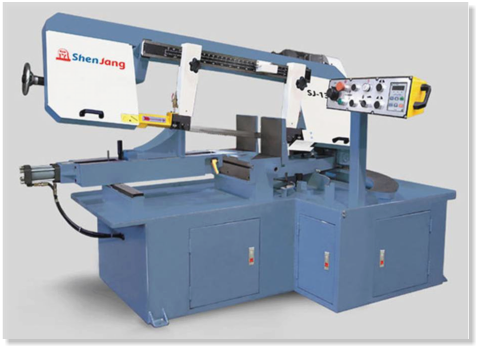

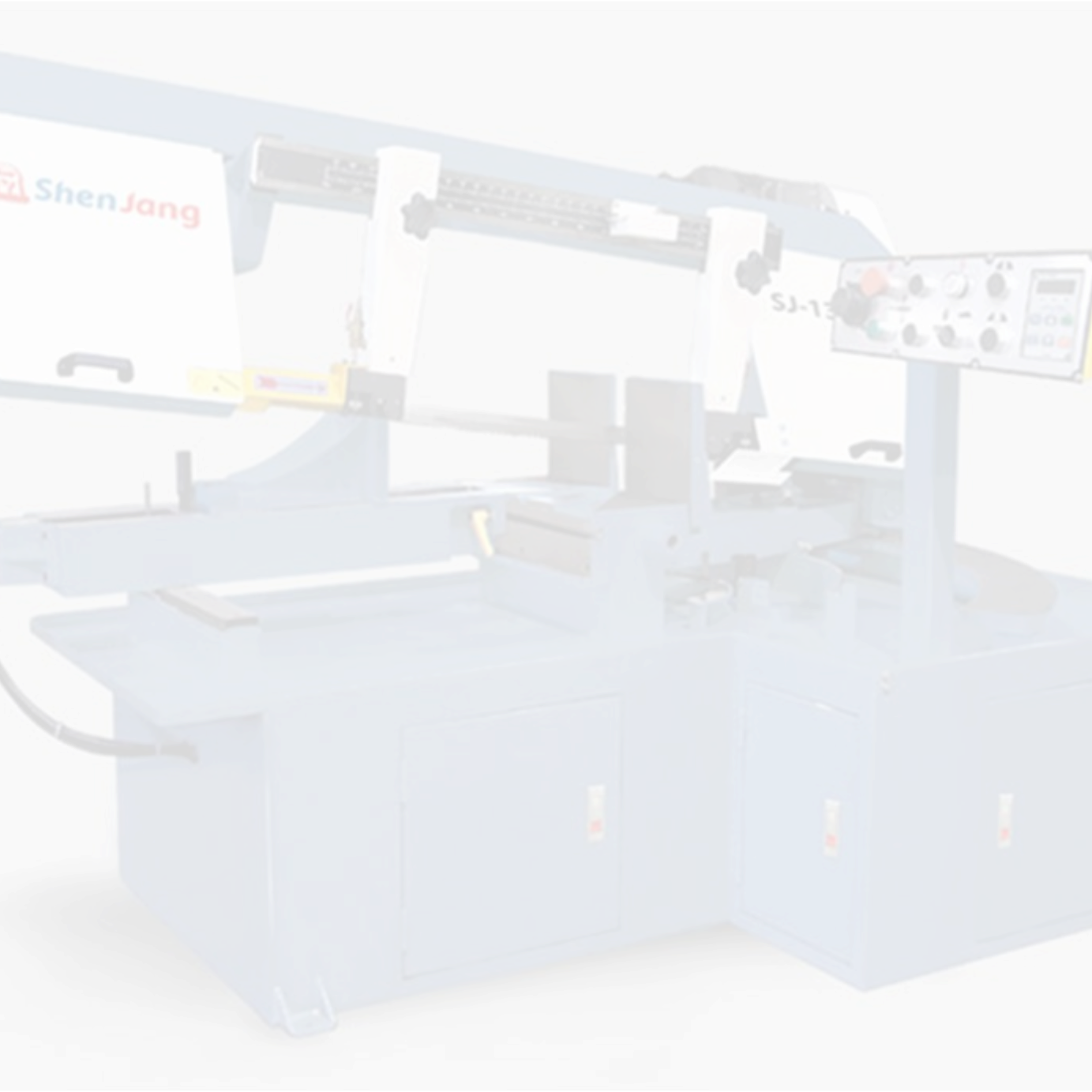

Semi-Automatic Horizontal Bandsaw
Contact us today
083 679 3706
Specifications
SJ-13SAT (13”)
13” (330 mm)
13” (330 mm)
Capacity at 90°
12” x 23 ½” (305 x 597 mm)
13” (330 mm)
13” (330 mm)
Capacity at 45°
8” x 16” (203 x 407 mm)
11” (280 mm)
11” (280 mm)
Capacity at 60°
7” x 12” (178 x 305 mm)
Blade Size
34 x 1.1 x 4365 mm
Motor
3 HP (2.25 kW)
Speed Range
15 ~ 90 MPM
Packing Size
2280 x 1540 x 1540 mm
Nett Weight
830 kg
Gross Weight
950 kg
SJ-13SAT (13”)
•
Bi-Direction Mitre Cutting - Angle Cutting
