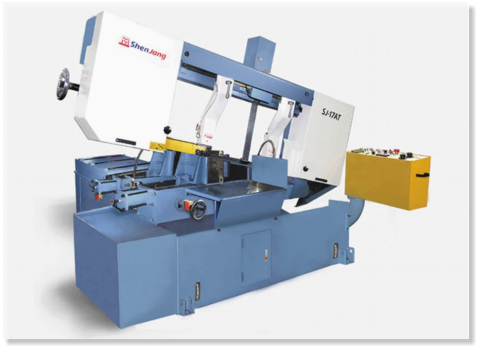

SJ-17AT (17”) • Hydraulic Vice Feed - Hydraulic Down Feed - Angle Cutting
Features • Heavy duty Automatic Machine • Hydraulic vice feed for continuous automatic cutting • Swivel head for easy 45 degrees angle cutting without moving material • Auto-cutting, auto feeding, auto lifting frame and auto clamping double vice • Hydraulic down feed • Frequency Inverter • Hydraulic chip conveyor • Automatic blade breakage power off system • Out of stock sensor • Counting device • Flushing hose • Length indexing digital readout • Work light fitted standard • Efficient coolant system with built-in tank and pump • Instant blade tension • Large tungsten carbide and roller blade guide • Adjustable rod for the same cutting length • Rugged fabricated steel construction, powerful drive and positive vice
© 2016 PICROSYNC CC - Reg. No. 2010/020942/23 - All Rights Reserved Address: Unit E, 8 Moller Street, Industries East, Germiston, 1401 Phone: +27 83 679 3706 Email: service@picrosync.co.za Business hours: Mondays - Thursdays: 07:30 - 17:00 Fridays: 07:30 - 14:30
Sole South African Distributor
Design by Weberation

Is your machine alerting you to overload alarms, or showing any

other signs of abnormal operation ?

Give us a call right away ! Arrie - Service Co-ordinator +27 83 679 3706
Retrofit
Contact
Gallery
Consumables
Home
Automatic Horizontal Bandsaw
• Specifications • Features
Specifications
SJ-17AT (17”)
17” (432 mm)
15 ¾” (401 mm)
Capacity at 90°
13 ¾” x 19 ¾” (350 x 502 mm)
14” (356 mm)
13” (330 mm)
Capacity at 45°
9” x 14” (228 x 356 mm)
Blade Size
34 x 1.1 x 4570 mm
Vice Control
Hydraulic
Speed Range
15 ~ 90 MPM
Motor - Hydraulic
1 HP (0.75 kW)
Motor - Blade
7.5 HP (5.5 kW)
Hydraulic Tank Capacity
60 L
Coolant Capacity
56 L
Packing Size
2610 x 2280 x 1880 mm
Nett Weight
1750 kg
Gross Weight
2000 kg
Bundle Cutting Option
W: 180 - 250 mm H: 70 - 180mm
