• Specifications • Features • Standard Configuration • Optional Configuration • Applications • Video
Specifications
V1160L
X-axis
1100 mm
Y-axis
610 mm
Z-axis
610 mm
Travel
Distance from table surface to spindle gauge plane (BT40)
150 - 760 mm
Size
1200 x 600 mm

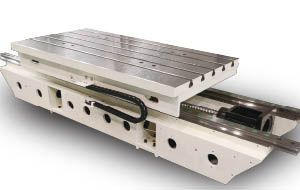

Work Table
Maximum Load
1000 kg
Counterweight
No
Spindle Drive
Direct-Drive / Belt
Spindle Taper
BT40
Spindle Speed
10 000 / 8000 rpm
Spindle Motor Power (Continuous / Maximum)
11 / 15 kW
Spindle
Spindle Torque (Continuous / Maximum)
52.5 / 95.5 N.m
Rapid Traverse X / Y / Z
36 / 36 / 24 m/min
Cutting Speed
12 m/min
3 Axes Screw Diameter
40 x 12 mm
Feed
3 Axes Roller Linear Guide Way Width
45 mm
Positioning
0.008 mm
Accuracy (20 ± 0.5℃)
Repeatability
0.005 mm
Tool Magazine Type
Disk
Tool Magazine Capacity
24
Tool Magazine
Tool Change Time
1.6 sec
Weight
7000 kg
Control System
Fanuc / Siemens / Mitsubishi

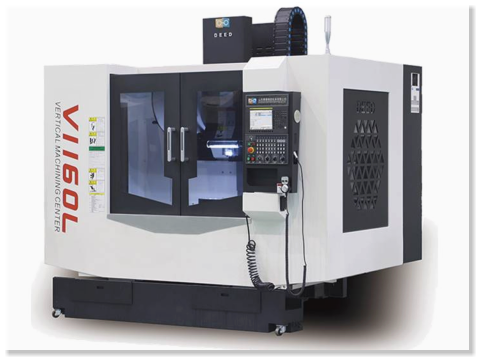

Vertical CNC Milling Machine
Features

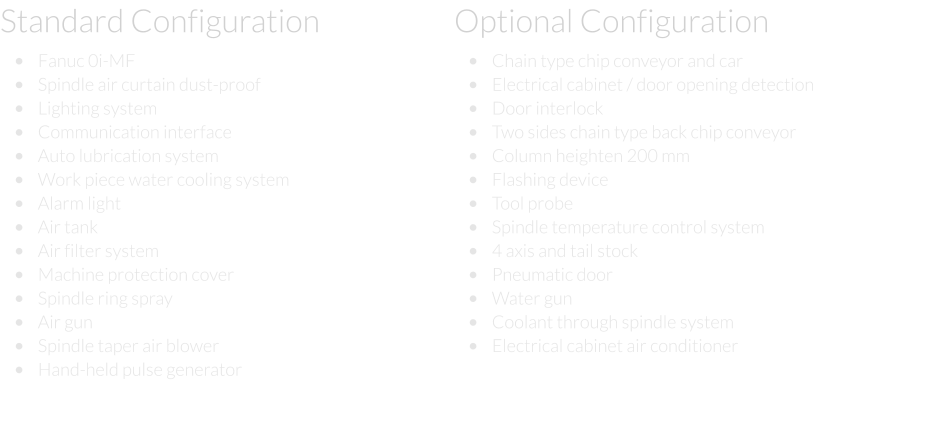

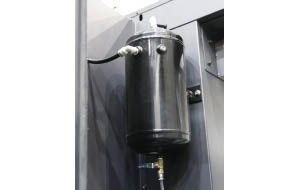

Standard Configuration • Fanuc 0i-MF • Spindle air curtain dust-proof • Lighting system • Communication interface • Auto lubrication system • Work piece water cooling system • Alarm light • Air tank • Air filter system • Machine protection cover • Spindle ring spray • Air gun • Spindle taper air blower • Hand-held pulse generator Optional Configuration • Chain type chip conveyor and car • Electrical cabinet / door opening detection • Door interlock • Two sides chain type back chip conveyor • Column heighten 200 mm • Flashing device • Tool probe • Spindle temperature control system • 4 axis and tail stock • Pneumatic door • Water gun • Coolant through spindle system • Electrical cabinet air conditioner
Video
Applications
• Shandong DEED Precision Machine Tool Co., LTD
