• Specifications • Features • Standard Configuration • Optional Configuration • Applications • Video
Specifications
VMC50A
X-axis
650 mm
Y-axis
500 mm
Z-axis
600 mm
Distance from table surface to spindle gauge plane (D.D)
150 - 750 mm
Travel
Distance from table surface to spindle gauge plane (Belt)
120 - 720 mm
Size
750 x 500 mm
Work Table
Maximum Load
500 kg
Counterweight
No
Spindle Drive
Direct-Drive
Spindle Taper
BT40 / BBT40
Spindle Speed
10 000 rpm
Spindle Motor Power (Continuous / Maximum)
11 / 15 kW
Spindle
Spindle Torque (Continuous / Maximum)
52.5 / 95.5 N.m
Rapid Traverse X / Y / Z
40 / 40 / 32 (40) m/min (with Fanuc Motor)
Cutting Speed
12 / 20 m/min (with Fanuc Motor)
Acceleration
4 / 6 m/s² (with Fanuc Motor)
3 Axes Screw Diameter
40 x 16 mm
Feed
3 Axes Roller Linear Guide Way Width
45 mm
Positioning
0.006 mm
Accuracy (20 ± 0.5℃)
Repeatability
0.004 mm

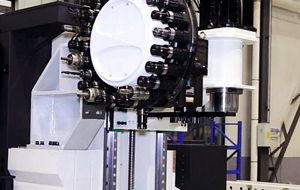

Tool Magazine Type
Disk
Tool Magazine Capacity
24 / 30
Tool Magazine
Tool Change Time
1.6 sec
Weight
7000 kg
Control System
Fanuc / Siemens / Mitsubishi / Heidenhain
Vertical CNC Milling Machine
Features

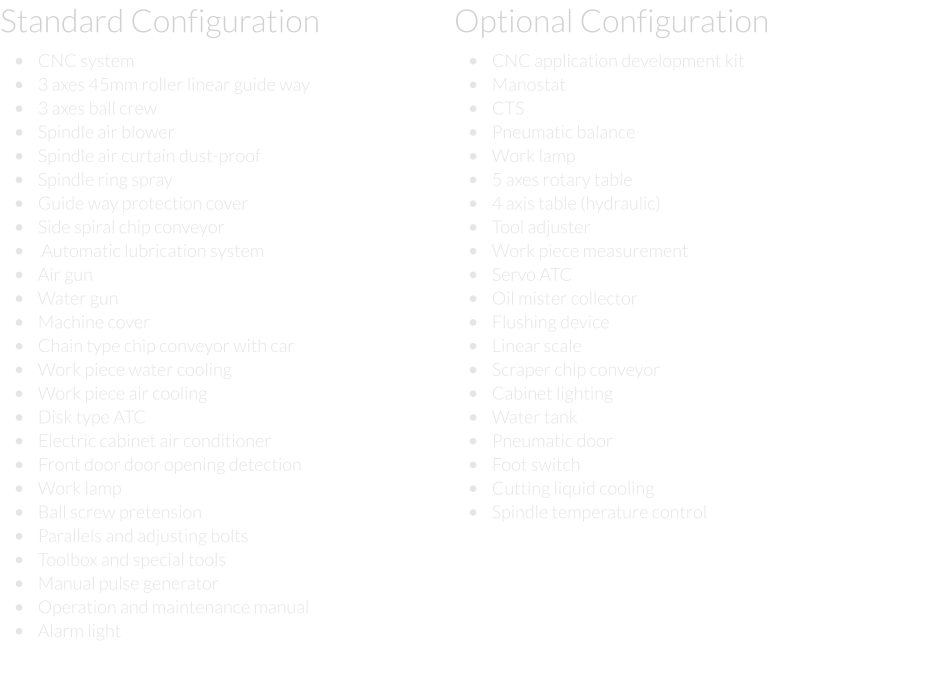

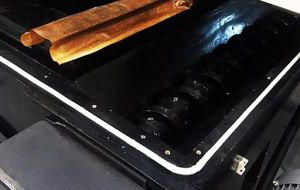

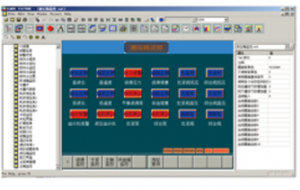

Standard Configuration • CNC system • 3 axes 45mm roller linear guide way • 3 axes ball crew • Spindle air blower • Spindle air curtain dust-proof • Spindle ring spray • Guide way protection cover • Side spiral chip conveyor • Automatic lubrication system • Air gun • Water gun • Machine cover • Chain type chip conveyor with car • Work piece water cooling • Work piece air cooling • Disk type ATC • Electric cabinet air conditioner • Front door door opening detection • Work lamp • Ball screw pretension • Parallels and adjusting bolts • Toolbox and special tools • Manual pulse generator • Operation and maintenance manual • Alarm light Optional Configuration • CNC application development kit • Manostat • CTS • Pneumatic balance • Work lamp • 5 axes rotary table • 4 axis table (hydraulic) • Tool adjuster • Work piece measurement • Servo ATC • Oil mister collector • Flushing device • Linear scale • Scraper chip conveyor • Cabinet lighting • Water tank • Pneumatic door • Foot switch • Cutting liquid cooling • Spindle temperature control
Video
Applications
• Shandong DEED Precision Machine Tool Co., LTD
• Vertical CNC Machining Center - DEED VMC60B

To view this video please enable JavaScript, and consider upgrading to a web browser that supports HTML5 video

To view this video please enable JavaScript, and consider upgrading to a web browser that supports HTML5 video
